Pedestrian Safety Assistant

More and more pedestrians are walking without paying attention to their surroundings, glancing only at their cell phones, risking being hit by a car. They are known as "zombie pedestrians."

This problem becomes more apparent when pedestrians reach an intersection with vehicle traffic and don't realize they don't have priority, as occurs at pedestrian crossings regulated by traffic lights.

To solve a growing problem in our towns and cities, AKRA-SEÑAL has developed a pedestrian safety assistant that enhances pedestrian awareness at these points.

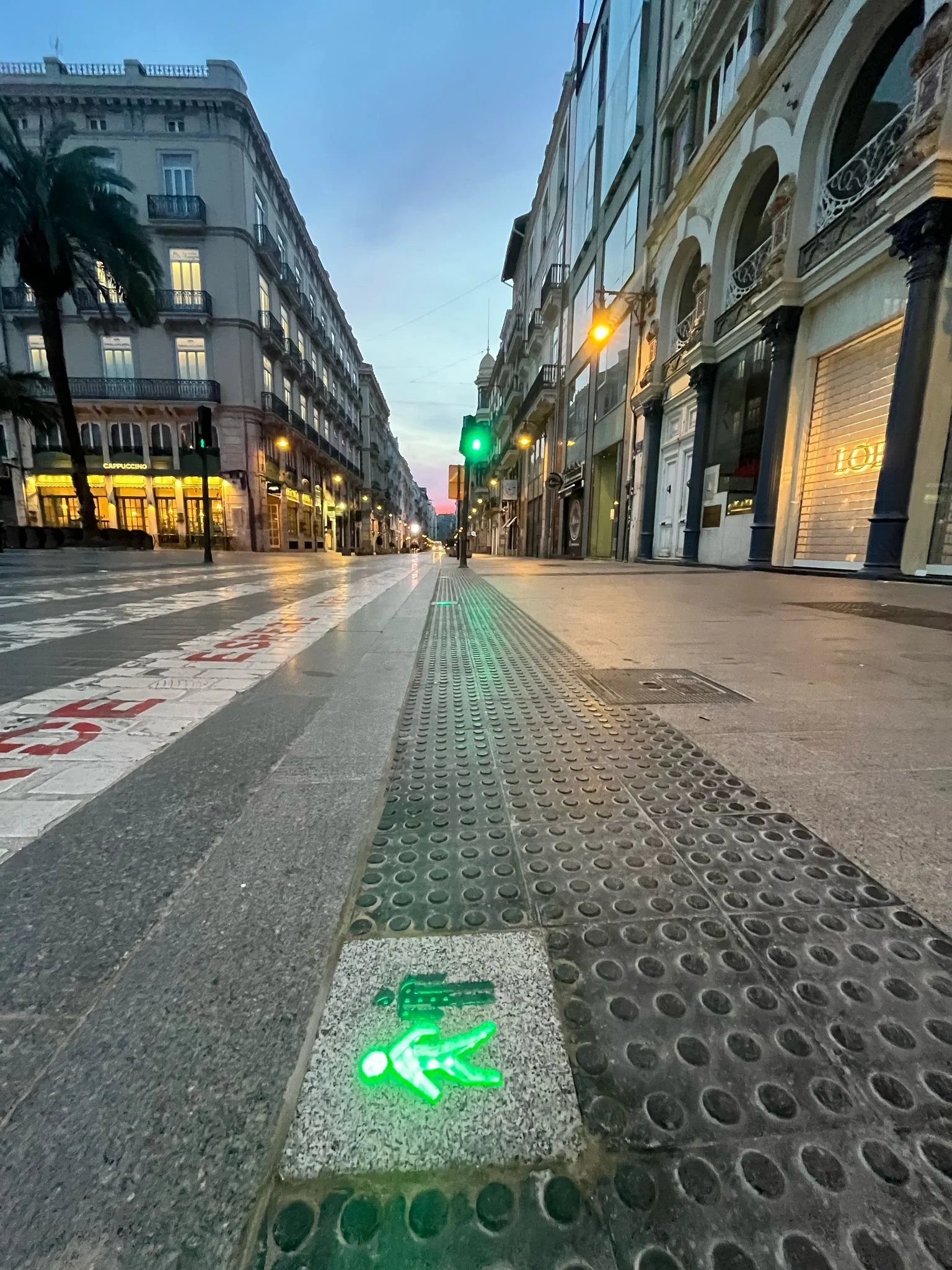

The device, installed on the ground aligned transversely to the pedestrian's path, aims to assist and supplement traffic signal information by synchronizing with the signals and being perceived in the background while walking while looking at their cell phones, both at night and in daylight thanks to the high brightness of the signal.

TECHNICAL FEATURES FOR GRANITE

Dimensions: 200 x 200 x 30 mm.

Protection rating: IP67.

Surface material: Granite

Bicycle or pedestrian material: High-hardness resin.

Base material: Compression-resistant resin.

Maximum load capacity: 30 tons.

Weight: 2.54 kg.

Type: SMD LEDs.

Color: Green and Red (Amber available depending on the model).

Beam angle: 30º LED.

GREEN LED

Quantity: 24 LEDs.

Luminous intensity: 2000 – 5000 mcd.

AMBER LED (Optional)

Quantity: 24 LEDs.

Luminous intensity: 11000 mcd.

RED LED

Quantity: 24 LEDs.

Luminous intensity: 4500–8000 mcd.

Power supply: 12 V DC.

Consumption at 12 V: 25–91 mA.

Operating temperature: -40°C to 80°C.

Wiring: (3 wires)

STAINLESS STEEL TECHNICAL FEATURES

Frame: Elastomeric polymer, resistant to abrasion and moisture.

Lens: 20 mm polycarbonate lens.

Cover: 5 mm AISI 316 nautical stainless steel cover.

LEDs: 24 + 24 high-brightness 3 mm Green/Red LEDs, visible in full daylight.

Power Supply: 12 V DC

*Requires a solid-state 230 V AC - 12 V DC transformer for connection to the traffic light controller.

Consumption: 0.5 amp-hours

Temperature Range: -25°C to +85°C

Weight: 2.46 kg

Mechanical Impact Resistance: IK 10

Body Penetration Rating: IP68

Mechanical Strength: 10 tons
